Gladiator Type F - Stainless Steel

SKU: ISS-0100-AM
Price
$11.25
Taxes and shipping calculated at checkout
Size: 1"
Material: 316 S.S.

Gladiator Type F - Stainless Steel

Size
Material
Price
Gladiator Type F - Stainless Steel
1" 316 S.S.
Price
$11.25
Sold out
Gladiator Type F - Stainless Steel
2-1/2" 316 S.S.
Price
$46.25
Sold out
Gladiator Type F - Stainless Steel
3" 316 S.S.
Price
$63.08
Sold out
Gladiator Type F - Stainless Steel
4" 316 S.S.
Price
$93.75
Sold out
Compare product options
Out of stock
Gladiator Type F - Stainless Steel
Size: 1" / Material: 316 S.S.

Stock Notification

Get notified when this product is available again

Description

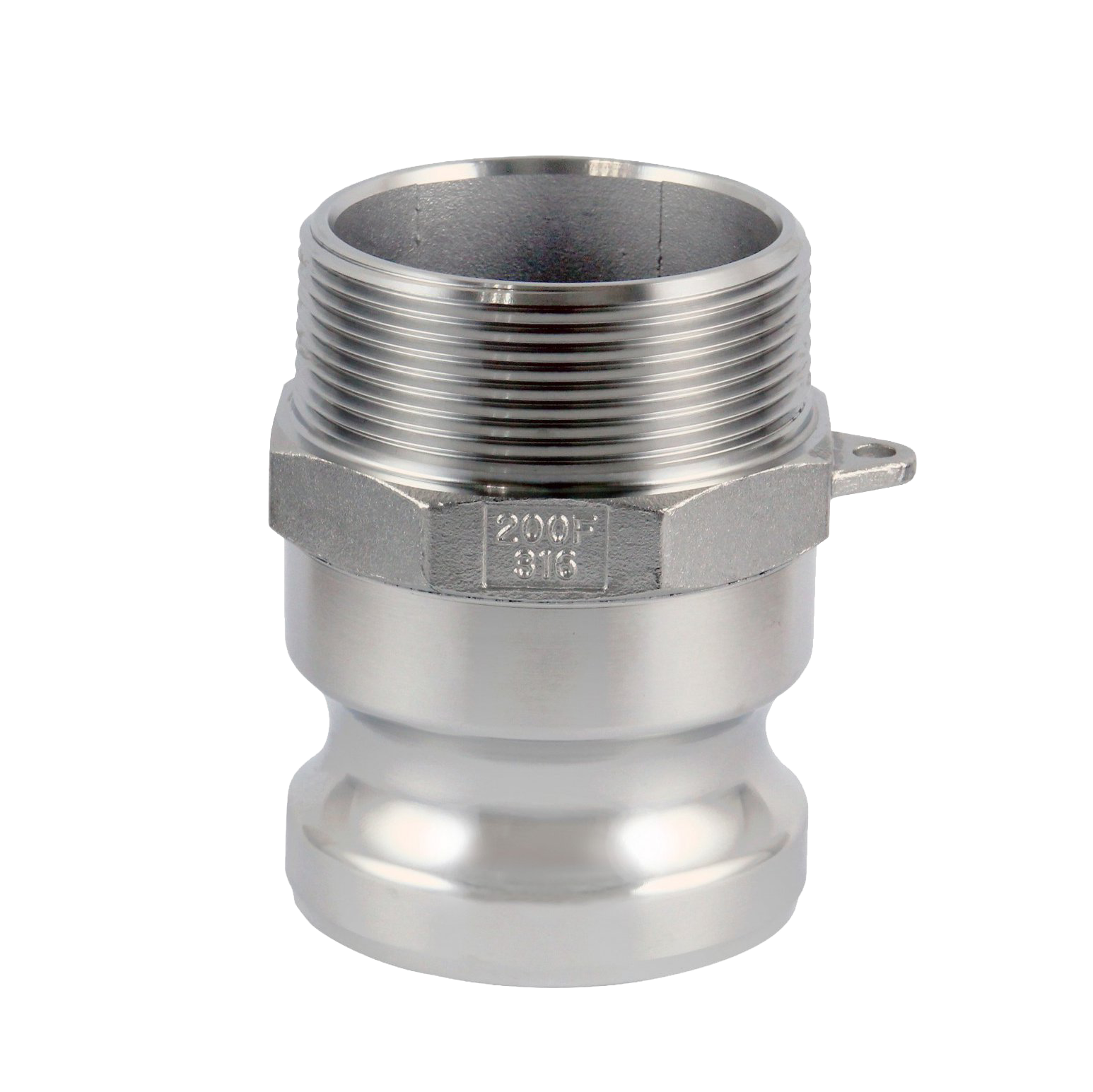

Type F - Male Adapter x Male NPT Threads

Gladiator Type AM

Product Details

    • Manufactured at our ISO 9001 Certified facility
    • Manufactured to Meet A-A-59326 Mil Specifications
    • Gravity Cast
    • 6” and Up - Machine Gasket Rings with Lip
    • All Exposed NPT Threads Come with NPT Protectors
    • Each Individually Bagged
    • Buna Gasket Temperature rating -40°F  to 212°F

Using the fitting

    • To make a connection slide the male adapter into the coupler and with normal hand pressure, press the cam levers down.
    • To Uncouple lift the cam arms and remove the adapter.

PSI Rating



Warning

    • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
    • Pressure rating is based on the seal of the mating part
    • Pressure rating recommendations are based on the use of mating Gladiator fittings at temperature 70°F / 21°C with a standard seal installed.
