Description

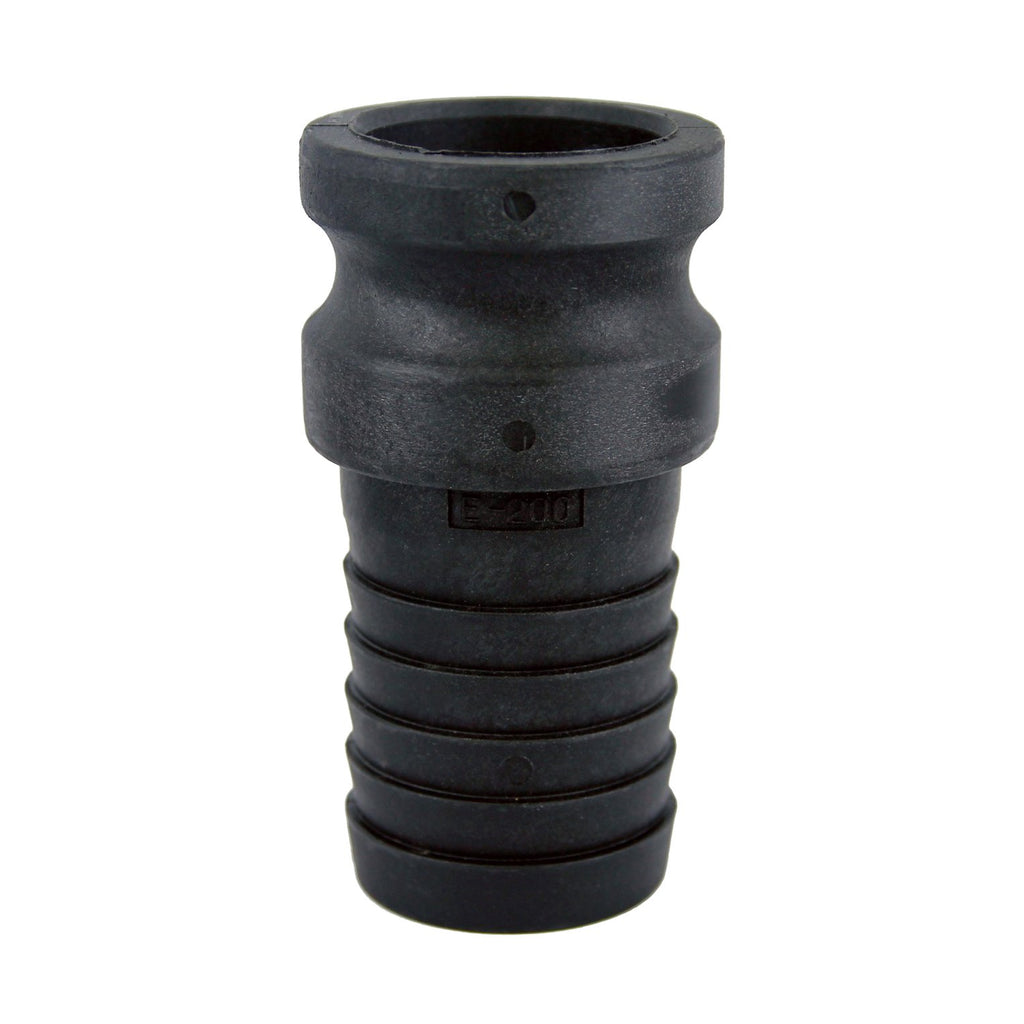

Type E - Male Adapter x Hose Shank
Gladiator Type AH
Product Details
- Manufactured at our ISO 9001 Certified facility
- Manufactured to Meet A-A-59326 Mil Specifications
- Gravity Cast
- 6” and Up - Machine Gasket Rings with Lip
- All Exposed NPT Threads Come with NPT Protectors
- Each Individually Bagged
- Buna Gasket Temperature rating -40°F to 212°F
Using the fitting
- To make a connection slide the male adapter into the coupler and with normal hand pressure, press the cam levers down.
- To Uncouple lift the cam arms and remove the adapter.
PSI Rating
Warning
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Gladiator fittings at temperature 70°F / 21°C with a standard seal installed.
