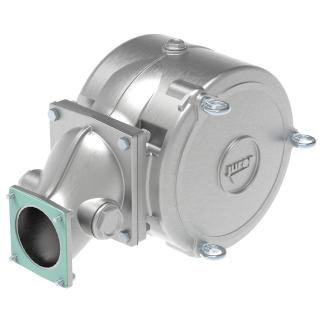

The Filter Suction Units consist of an air filter onto which are installed a rear flange to connect to the intake piping and a side manifold (connected to the outlet from the filter), duly flanged for installation on various types of JUROP pumps.
All versions are equipped with an aluminum filter housing (having a stainless steel cartridge), a side flanged aluminum manifold and a rear steel flange. The filter body and the cover of suction units code 18521002E0 and 18521005E0 are made of aluminum alloy (SG AlCu3 UNI7369/74) through mold casting. The filter cartridge is made of stainless steel.
Max Operating Pressure[bar] - (-1 /+0.5)
Max Air Flow[m3/h] - 1,300
Material - Aluminum
Works On:
PN130
PN140
PN155
PNR104
PNR124
PNR142
LC420
LC580
RV520
DL150
DL180
Jurop SUCTION FILTER GROUP - 4-BOLT
Price
$455
