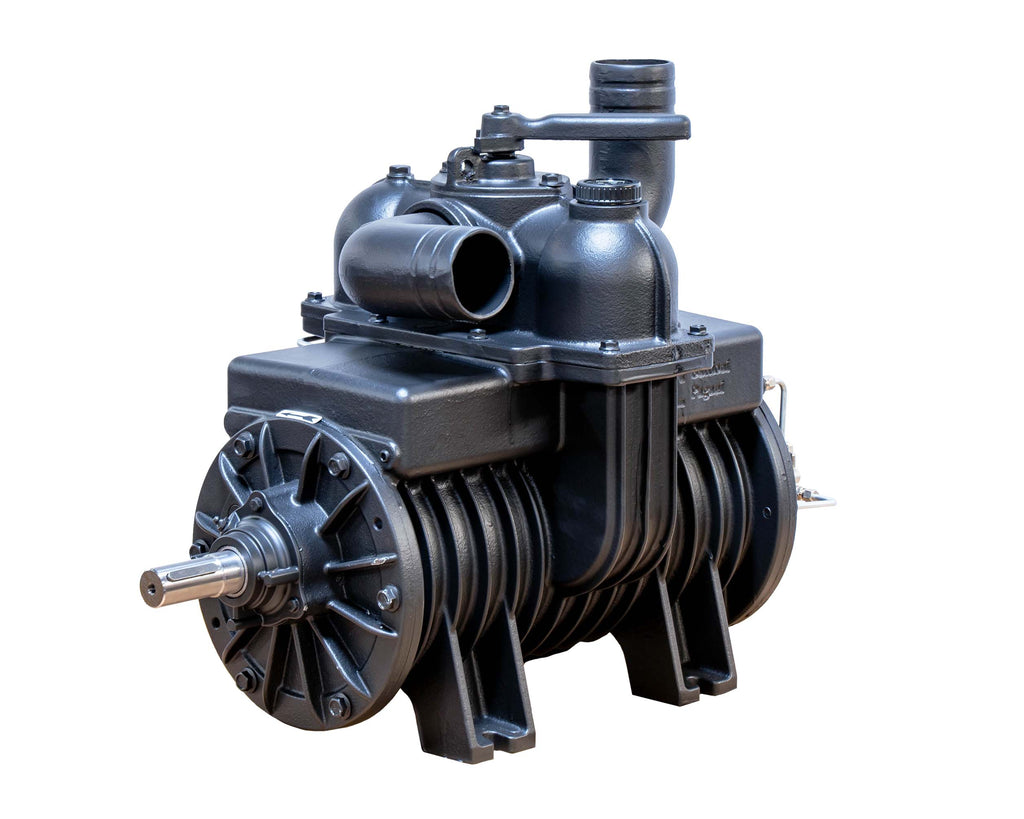

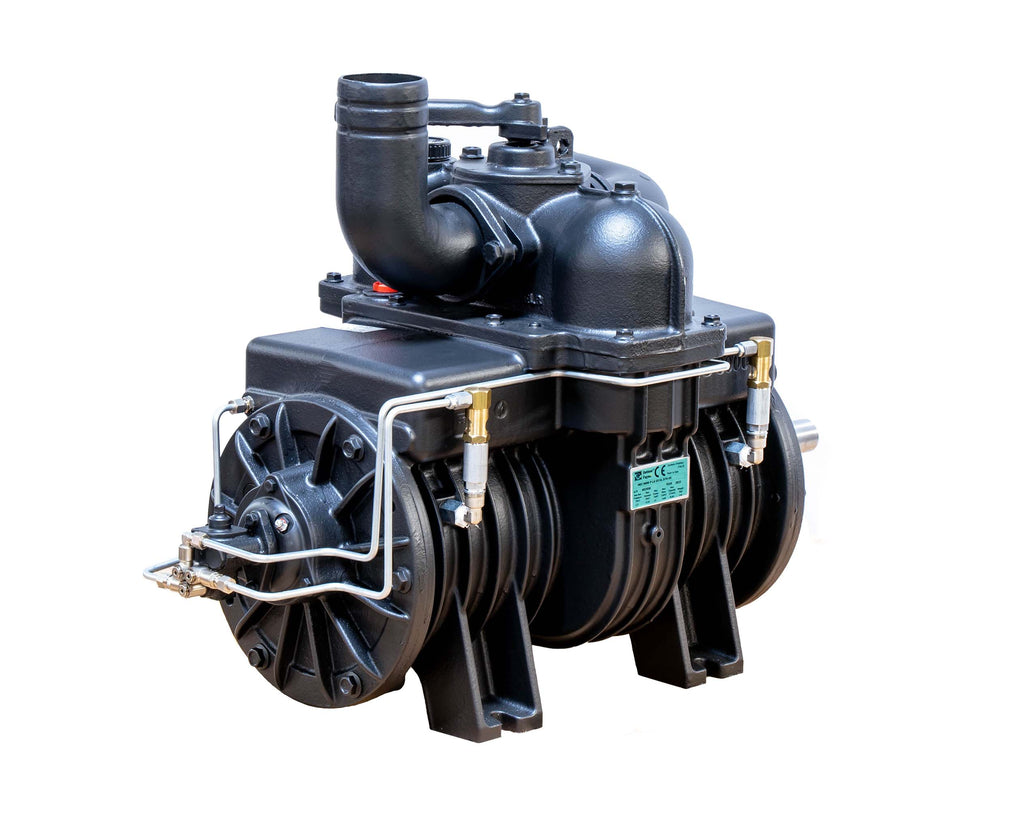

The reliability and strength of the MEC is the result of continuous design and manufacturing improvements accomplished during 40 years of deployments.
It’s simple and practical design made the MEC pumps the product of reference for agricultural and municipalities septic applications.
STANDARD FEATURES
• Forced lubrication, 4-ways valve, non-return check valve
• 3” Hose Connections
• Thread for Overpressure valve: G 1”1/4
Max Rate of Flow
(CFM)
285
Max rpm
(rpm)
1400
Max Working Pressure
Bar (PSI)
2.5 (36)
Max Vacuum %
InHg
Power @ max vacuum
kW (hp)
16 (21.4)
Net Weight
Kg (lbs.)
141 (311)
Dimensions
*PUMP LENGTH IS FROM FRONT OF SHAFT*
In (LxWxH)
23.81" x 15.35" x 20.63"
Oil Tank Capacity
(l)
3
Rebuild Kit
INFORMATION MANUAL
INSTRUCTION AND MAINTENANCE MANUAL
Counter-Clockwise
!
