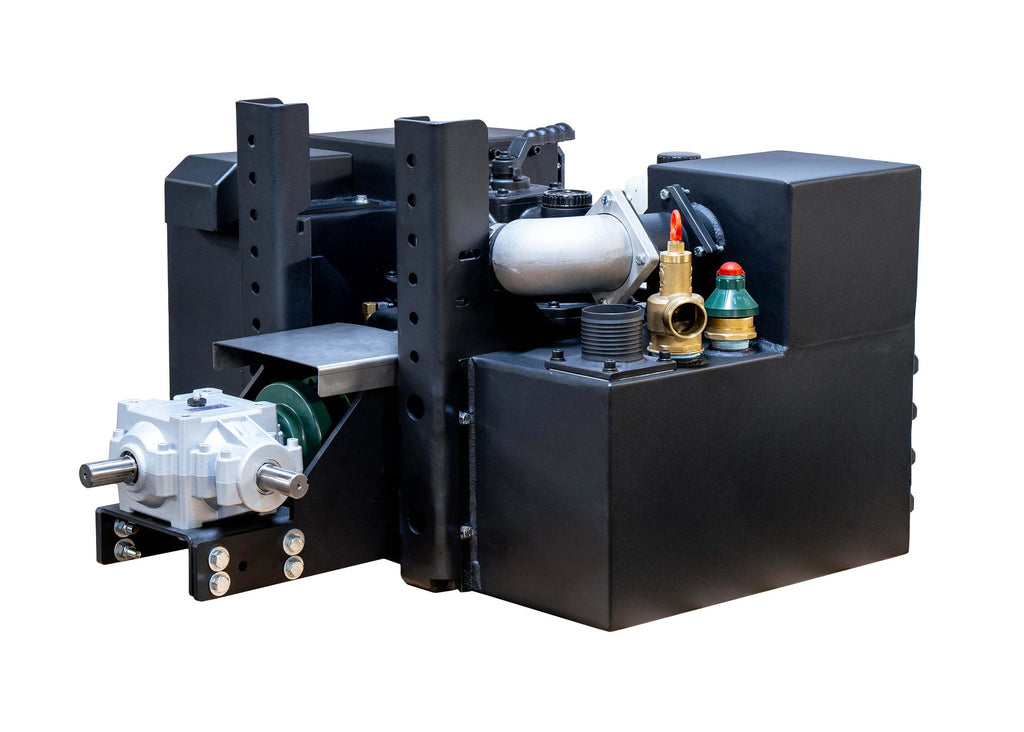

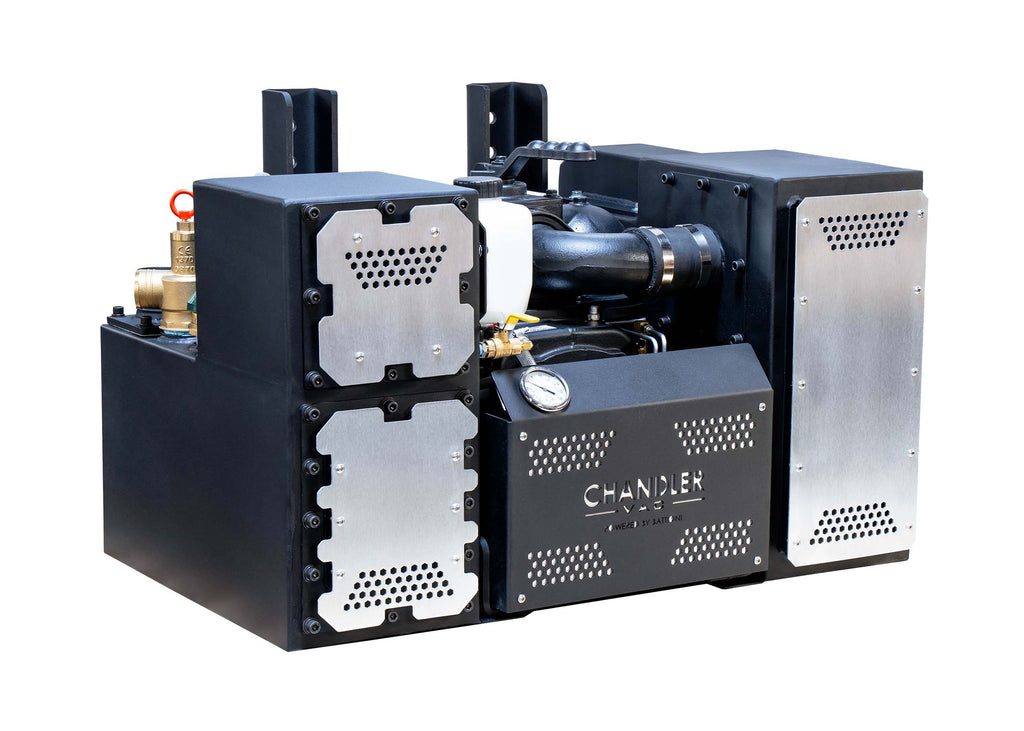

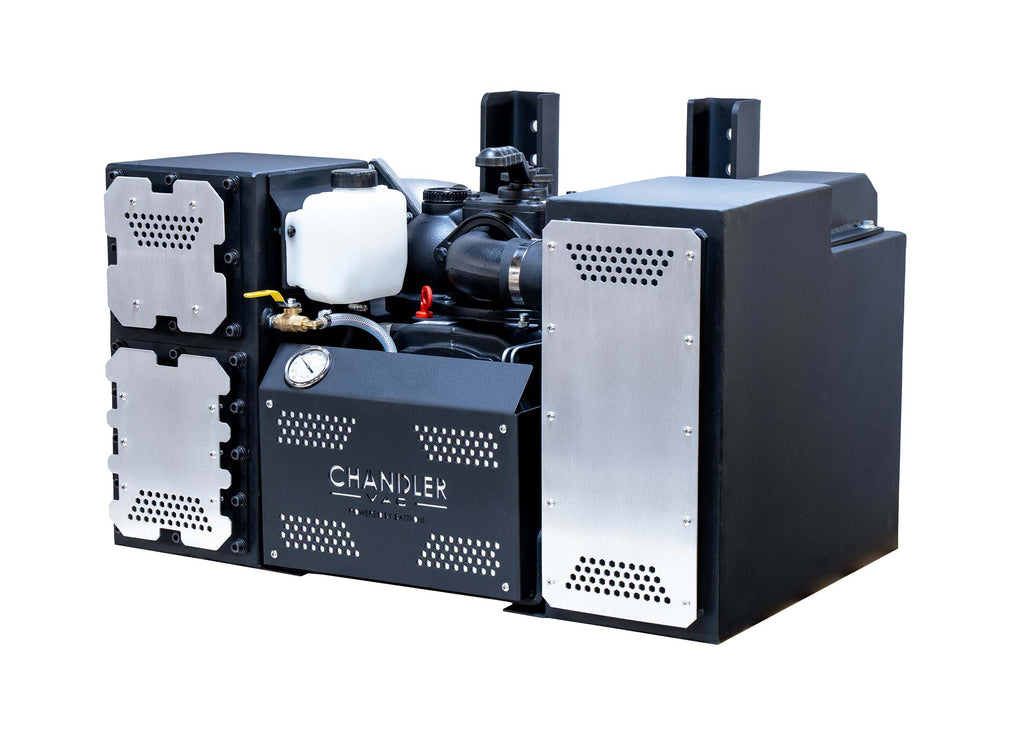

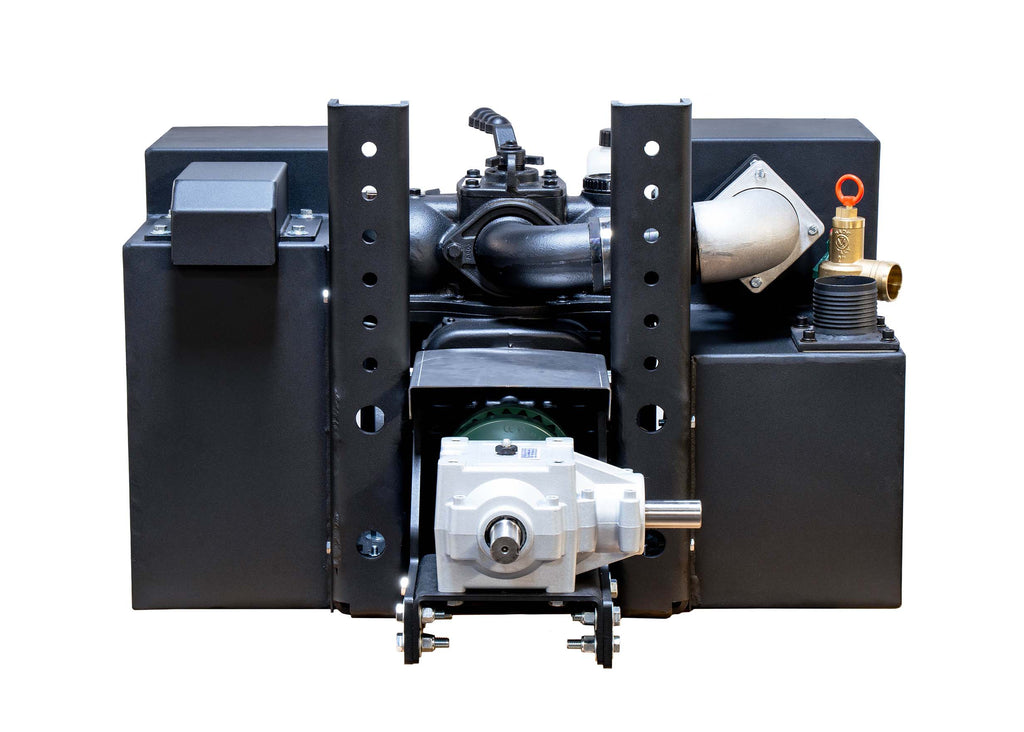

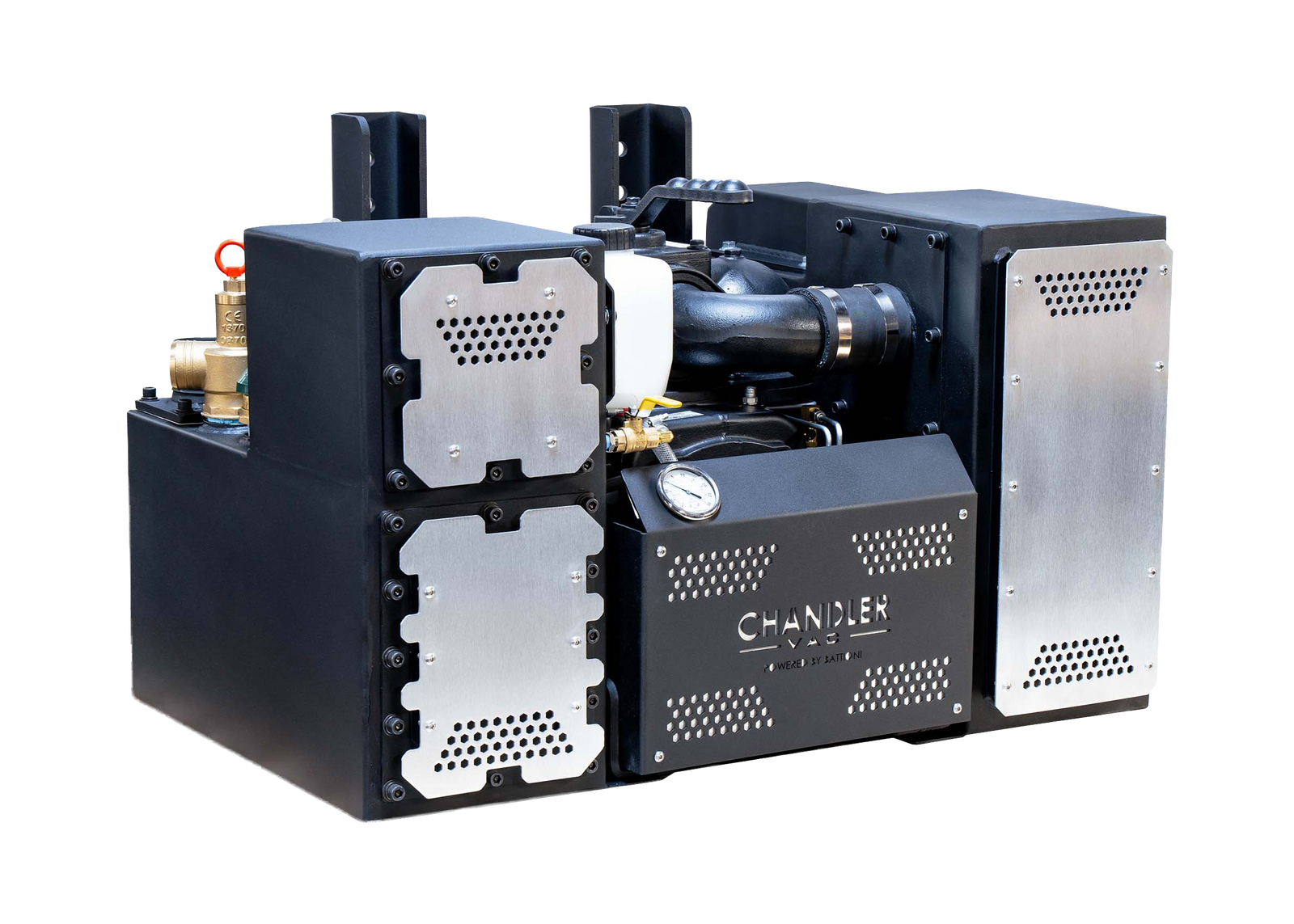

Chandler VAC B1100 Spartan Vacuum Pump Pack - 393 CFM

SKU: BAL-1100-SPA
Price
$5,999
Taxes and shipping calculated at checkout
In stock and ready for shipping

DESCRIPTION

The B1100 Spartan Pump Pack is engineered with the high-performance Battioni Ballast 11000 rotary vacuum pump at its core. Designed for demanding heavy-duty applications, the Ballast 11000 features an advanced Crash Protection System with a sliding flange mechanism. This innovative technology safeguards the pump’s housing and rotor from damage in the event of vane failure, ensuring consistent reliability and operational efficiency under the most challenging conditions.

FEATURES

  • Built in Secondary
  • Muffler Exhaust
  • Flushing Kit for Easy Maintenance
  • Two Year Warranty
  • Exterior Oil Level Indicator
  • Automatic Lubrication System
  • Oil Tank

SPECIFICATIONS

Max Rate of Flow

(CFM)

393

Operating Speed

(rpm)

1200-1400 RPM

Max Working Pressure

Bar (PSI)

2.5 (36)

Max Vacuum %

InHg

95% (28.5")

Power @ max vacuum

kW (hp)

21 (28,2)

Net Weight

Kg (lbs.)

326 (720 lbs.)

Dimensions

*LENGTH IS FROM FRONT OF SHAFT*

In (LxWxH)

 41 5/16" x 36 3/4" x 22 7/8"

Oil Tank Capacity

(l)

3
