How Do Industrial Vacuum Systems Work in Continuous vs. Batch Operations?

Vacuum systems aren't one-size-fits-all. They serve everything from food packaging lines and pharmaceutical production to bulk powder transfer and wastewater treatment. But behind every industrial vacuum application, there's a big operational distinction that shapes how the system is built and what it has to handle: continuous vs. batch processing.

Understanding how these two workflows affect vacuum system design can help you troubleshoot better, maintain smarter, and avoid building the wrong setup for the job. Whether you're an OEM, plant engineer, or maintenance lead, the way your vacuum system operates needs to align with how your product—or waste—moves through the line.

Continuous Operation: Steady, Demanding, and Unforgiving

In a continuous process, the system runs around the clock. Material is introduced at one end and exits at the other, without breaks or downtime between cycles. That means your vacuum pump, blower, filters, seals, and control valves are all under pressure to perform nonstop.

Where You'll See It

●       Pneumatic conveying lines in plastics, cement, and grain handling

●       Food packaging and vacuum sealing lines

●       High-volume pharmaceutical production

●       Central vacuum systems in large-scale manufacturing

These systems rely on predictability. They're usually automated and designed for efficiency at scale. But that same consistency also means they're less forgiving if something goes wrong.

What the Vacuum System Needs

●       High duty-cycle vacuum pumps: These need to run long hours without overheating or losing capacity. Oil-lubricated rotary vane or liquid ring pumps are common here.

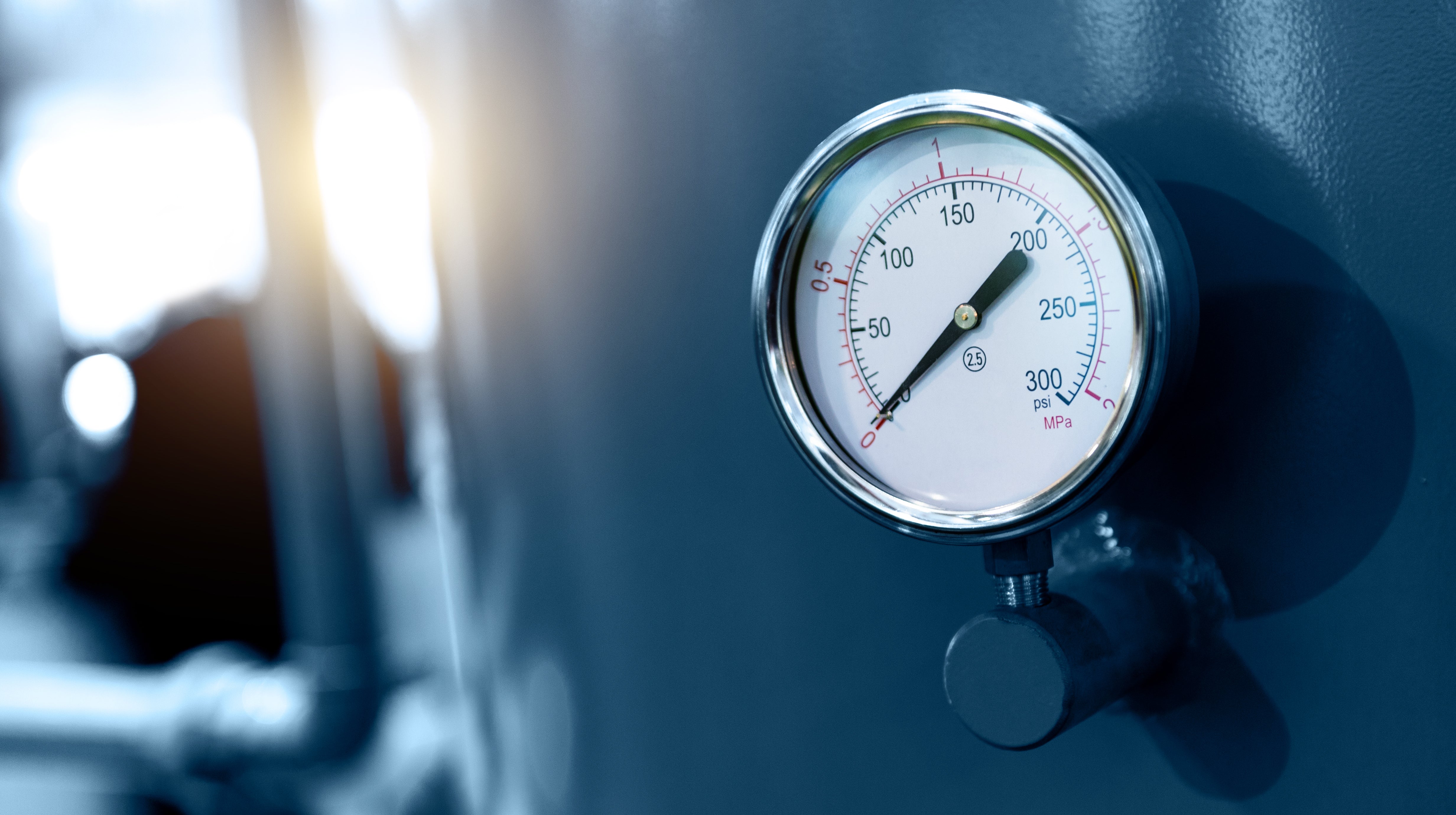

●       Automated pressure controls: Setpoints can't drift. Consistency is everything in continuous processing.

●       Redundancy: Backup pumps and smart switching help prevent downtime during maintenance or failure.

●       Heat management: Operating nonstop means heat builds up, and system cooling becomes critical—especially for oil-based systems.

Even the fasteners, like your favorite wing nut bolts, matter here. You want access points that make it easy to perform maintenance fast—without shutting down the entire line.

Batch Operation: Flexible but Variable

In batch processing, material moves through the system in defined, often irregular stages. One charge of the product is processed, then the system is cleaned or reset before the next begins. Batch gives more flexibility, but it comes with different vacuum demands.

Where You'll See It

●       Resin or chemical blending

●       Food and beverage tank cleaning

●       Vacuum drying or degassing

●       Vacuum-forming operations in plastics

You don't always need the same flow rate or vacuum depth every time, so these systems tend to have more valves, more operators involved, and more on-the-fly adjustments.

What the Vacuum System Needs

●       Variable-speed pumps: Rotary vane or dry screw pumps are often used here, with frequency drives to modulate performance.

●       Manual and programmable control options: Operators may need to fine-tune pressure or flow between batches.

●       Modular layout: It's easier to isolate sections for cleaning or swap components.

●       Lower duty-cycle tolerance: The system gets downtime between cycles, so oil degradation and mechanical fatigue are slower—but maintenance still matters.

Batch systems might not run 24/7, but they do see more pressure cycling, temperature swings, and potential for human error. These systems need seals and valves that can handle more starts and stops without leaking.

Key Differences That Shape Design

If you’re sourcing a new vacuum system—or trying to adapt one—don’t underestimate how the mode of operation affects what you need.

In both systems, vacuum pumps are only as good as the environment they're matched to. Undersize one in a continuous line and it'll overheat or wear out fast. Oversize one for a batch process, and you'll waste energy and overpay for performance you don't use.

What About Filters, Hoses, and Lubrication?

Everything upstream and downstream of the pump matters too. Continuous systems often need multi-stage filtration and in-line separators to protect the pump from particulates or condensables. Batch systems need vacuum grease that can survive frequent seal openings without degrading.

And in either case, lubricant choice—vacuum pump oil or synthetic variants—affects thermal load and contamination risk. Consider humidity, chemical exposure, and run-time when choosing oil, and don't skip regular inspection. A clogged oil mist separator or filter can mimic pump failure if you're not paying attention.

Final Thoughts

Vacuum systems don't operate in a vacuum. (Figuratively speaking.) They're part of a larger production or cleanup ecosystem, and whether your plant runs nonstop or in batches, the vacuum system needs to keep pace. Matching your equipment to the operational style isn't just about pump specs—it's about flow control, maintenance scheduling, energy usage, and product quality.

Before you spec a blower or oil-sealed pump, ask yourself how the system is used—not just what it does. A continuous line is all about stability. A batch system is all about flexibility. Build accordingly.
