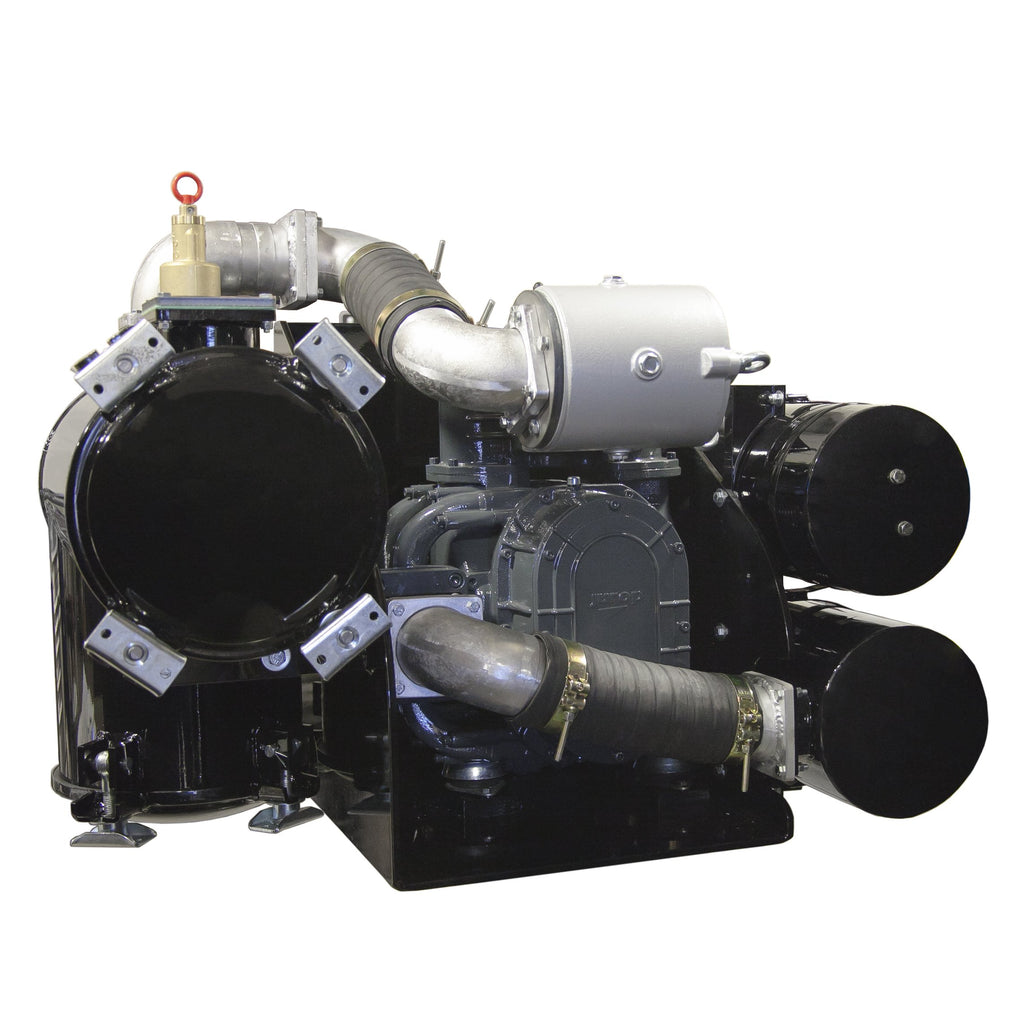

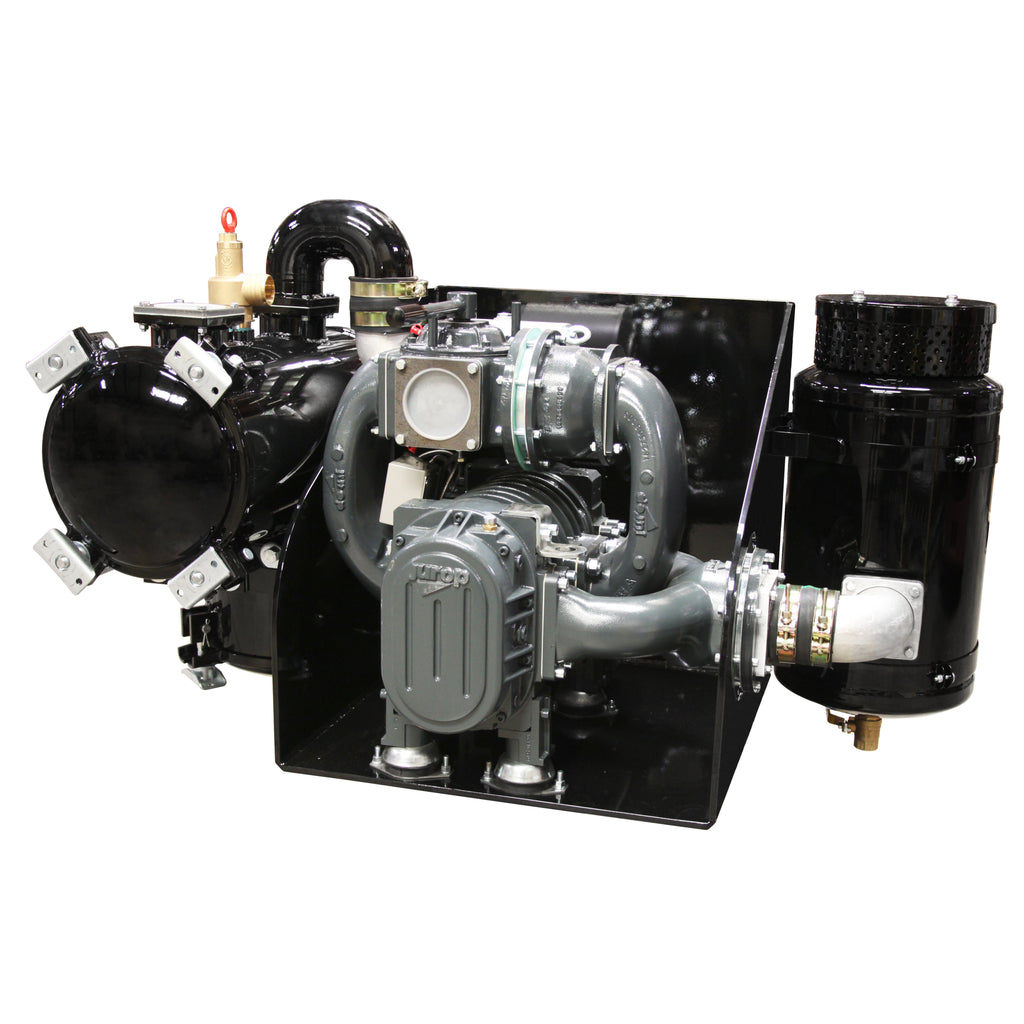

Chandler VAC DL 300 Eco-Pack Blower Package (1060 CFM)

Chandler VACSKU: 1004-2300

Pump: DL300
Price:
Sale price$16,799.00
Stock:
Re-stocking soon

Description

The Eco-Pack is a series of high volume tri lobe blower packages compact in design with the operator in mind. Unlike a rotary vane pump the Eco-Pack doesn’t require costly oil consumption or oil catch muffler to operate (less maintenance, eco-friendly unit).  The internal lobe cavity design of the Eco-Pack is 100 percent oil-free air.  This being a positive displacement pump it is most effective with high volumes of vacuum and pressure when needed. Keeping in mind moving more tank loads per day is essential.  The stainless steel filter, aluminum secondary, intake/exhaust silencers, pressure relief and vacuum/pressure changeover valve are all located conveniently for easy accessibility.  The unit is bolted on the truck frame of the truck and is powered from the truck power take off.  Our blower packages are designed to meet variable demand in a dynamic work environment.

The DL 300 Eco Pack Blower Package includes:

  • Jurop DL 300 with Positive Displacement Synchronized Tri Lobe Design
  • Designed for High Performance Vacuum/Pressure Liquid Waste Tanks
  • Oil Less Pump Lobe Cavity Design (Eco Friendly)
  • 4 Point Air Injection Cooling For Continuous Pumping
  • Vacuum/Pressure Changeover Valve*
  • Aluminum Secondary Shutoff with 2 Easy Access Inspection Covers
  • Two 2" Pressure relief valves
  • Aluminum Final Filter with Mesh Stainless Steel Cartridge
  • Overheating Alarm System
  • 1:1 Aluminum Heavy Duty 3 Shaft Gearbox and Shaft Protection Coupler
  • Exhaust and Air Injection Silencers
  • Heavy Duty Pump Blower Stand
  • Isolation Rubber Shock Pump Mount Pads
    *Optional Pneumatic Changeover Valve Available

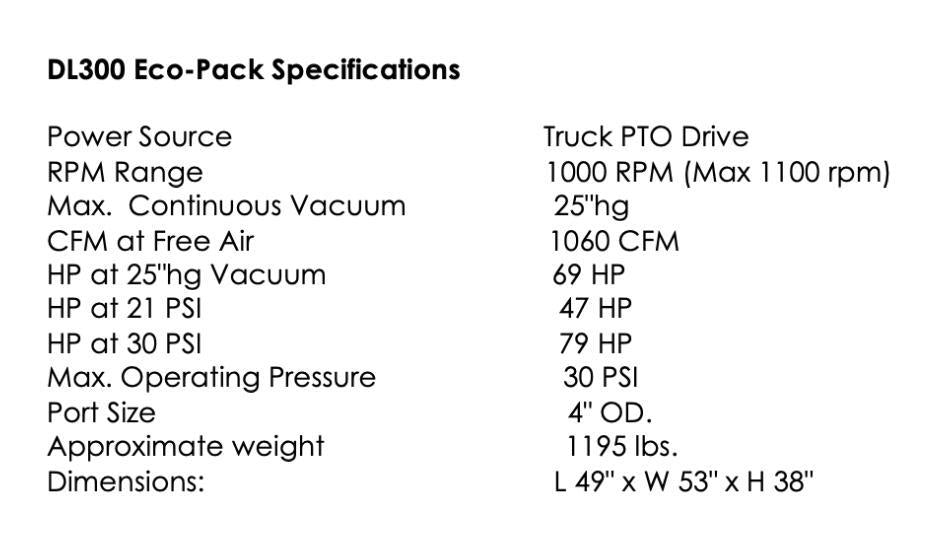

DL300 Eco-Pack Specifications

 Power Source                                     Truck PTO Drive

RPM Range                                          1000 RPM (Max 1100 rpm)

Max.  Continuous Vacuum              25"hg

CFM at Free Air                                  1060 CFM

HP at 25"hg Vacuum                        69 HP

HP at 21 PSI                                         47 HP

HP at 30 PSI                                         79 HP

Max. Operating Pressure                 30 PSI

Port Size                                                 4" OD.

Approximate weight                           1195 lbs.

Dimensions:                                           L 49" x W 53" x H 38"
